LN03T LED linear light detail
Performance Parameters
Luminous Efficiency: 160lm/W
LED Type: 2835 LED, Epistar/Philips
Input Voltage: AC200-240V, 50~60Hz
CCT: 2700~6500K
CRI: >80
PF: >0.95
Beam Angle: 30°/60°/90°/120°/Double 25°/asymmetric L or R / 120°（frosted cover）
Driver Brand: Isolated Driver
Working Temperature: -20℃-48℃
Lamp style
Linear Trunking System is an innovational
LED light, it is environmentally-friendly,
energy saving, bright and it is economical
but looks luxurious, widely used to
replace traditional flflood light, flfluorescent
lamp in supermarket, mall, warehouse,
office, hospital, school etc.
Linkable
Dimension

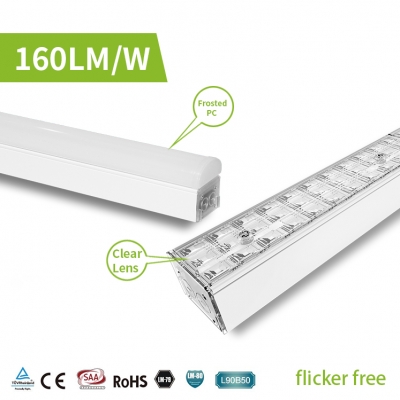

Difffferent diffffuser for difffferent distribution
DALI Dimmable
1.180-264VAC input
2. Class I power supply, with FG, no flflicker
3. Built-in active power factor correction circuit, high PF, low THD
4 Output dimming can be turned offff, and the standby power is less than 0.5W
5. Quick start, power-on start time is less than 0.5s
6. 10 kinds of output current can be selected through the code switch
7. Supports simultaneous dimming of multiple products in parallel
8. Natural cooling
9. Built-in DALI dimming function
Product Model
| Model |
Length |
CCT |
Size(mm) |
Carton (mm) |
G.W. |
| SL-LL2-30W-L060-3-SG-DA |
60cm (2 feet) |
2700K ~6500K |
L583.5*W80.7*H56.7 |
L635*W205*H180 |
5.5kg/4PCS |
| SL-LL4-40W-L060-3-SG-DA |
120cm (4 feet) |
L1138.5*W80.7*H56.7 |
L1200*W205*H180 |
10.5kg /4PCS |
| SL-LL5-60W-L060-3-SG-DA |
150cm (5 feet) |
L1438.5*W80.7*H56.7 |
L1490*W205*H180 |
12.0kg/4PCS |
| SL-LL2-30W-LGOO-3-SG-DA |
60cm (2 feet) |
L583.5*W80.7*H89.8 |
L635*W205*H240 |
5.5kg /4PCS |
| SL-LL4-40W-LGOO-3-SG-DA |
120cm (4 feet) |
L583.5*W80.7*H89.8 |
L1200*W205*H240 |
10.5kg/4PCS |
| SL-LL5-60W-LGOO-3-SG-DA |
150cm (5 feet) |
L1438.5*W80.7*H89.8 |
L1490*W205*H240 |
12.0kg /4PCS |
Light test report
Case
